City of Henderson Air Treatment System for Water Reclamation Facility

About

THIS PROJECT

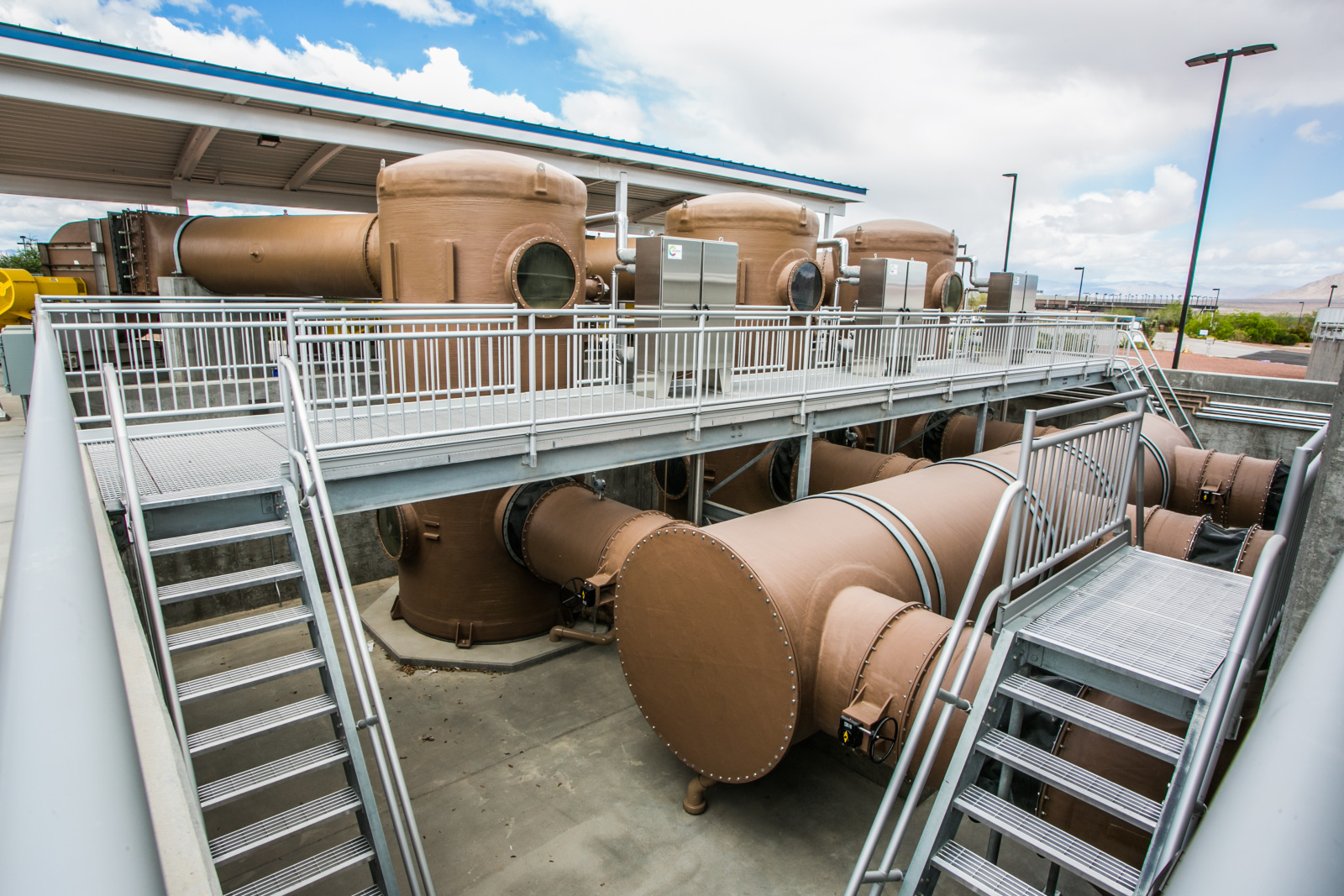

This project replaced an outdated, self-regenerating activated carbon system for foul air with a unit responsible engineered biofilter media system. The linear plug flow system is comprised of:

  • 800 linear feet of high-density polyethylene, fiberglass reinforced plastic (FRP) and aluminum ductwork
  • Three variable speed FRP foul air feed fans

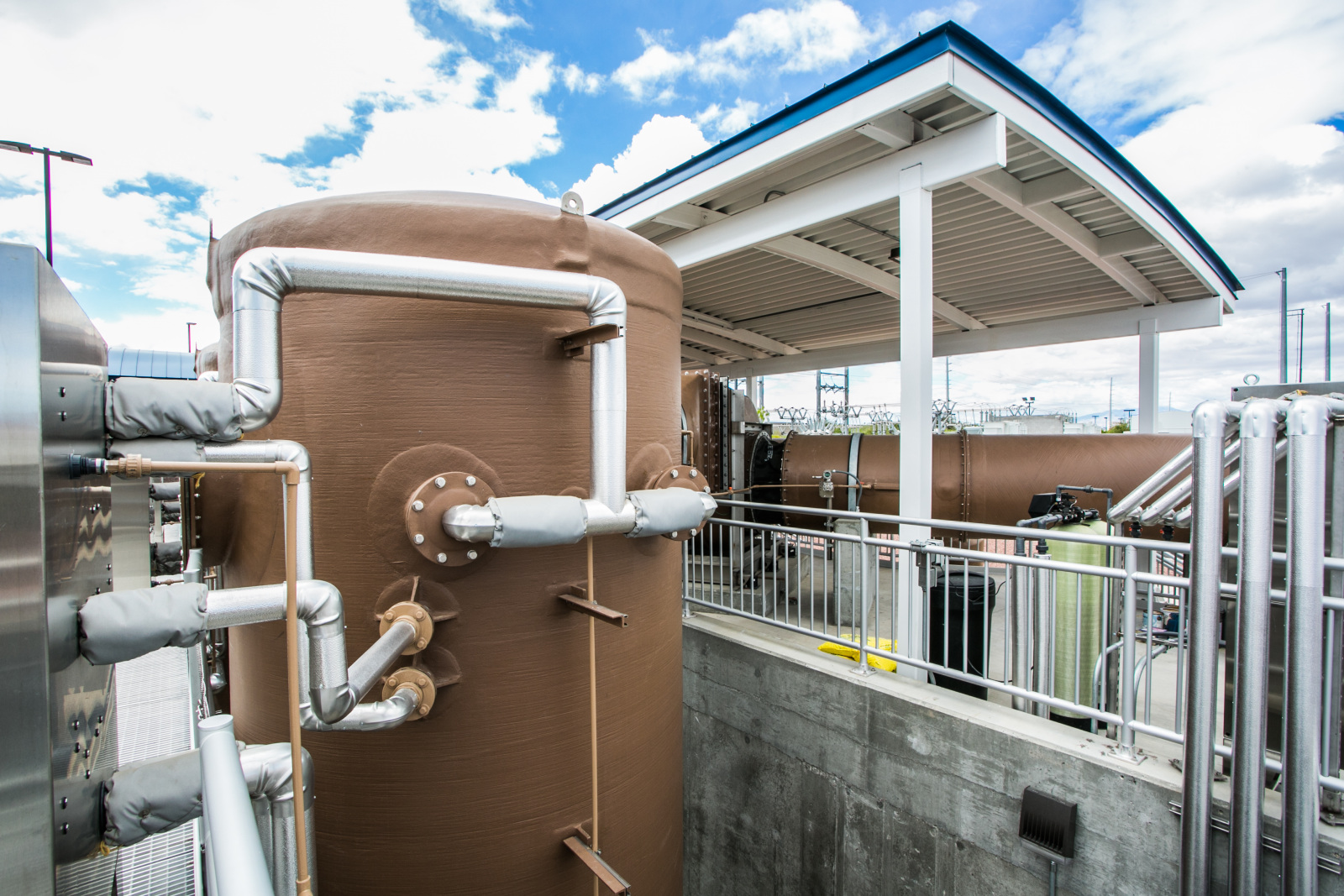

  • Three packed tower FRP plastic humidifiers

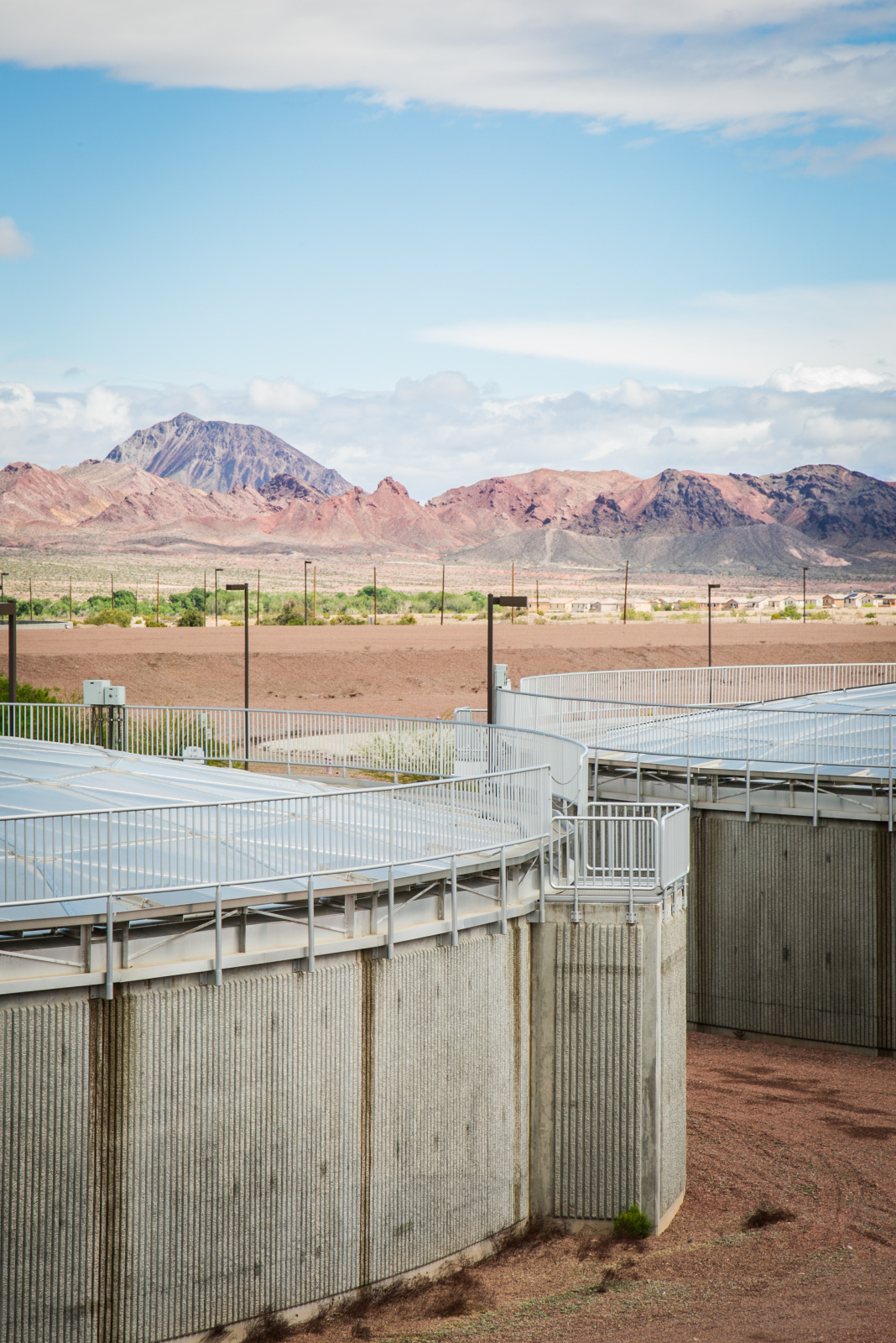

  • Three concrete media reactors
  • Three vertical inline mixed flow fans

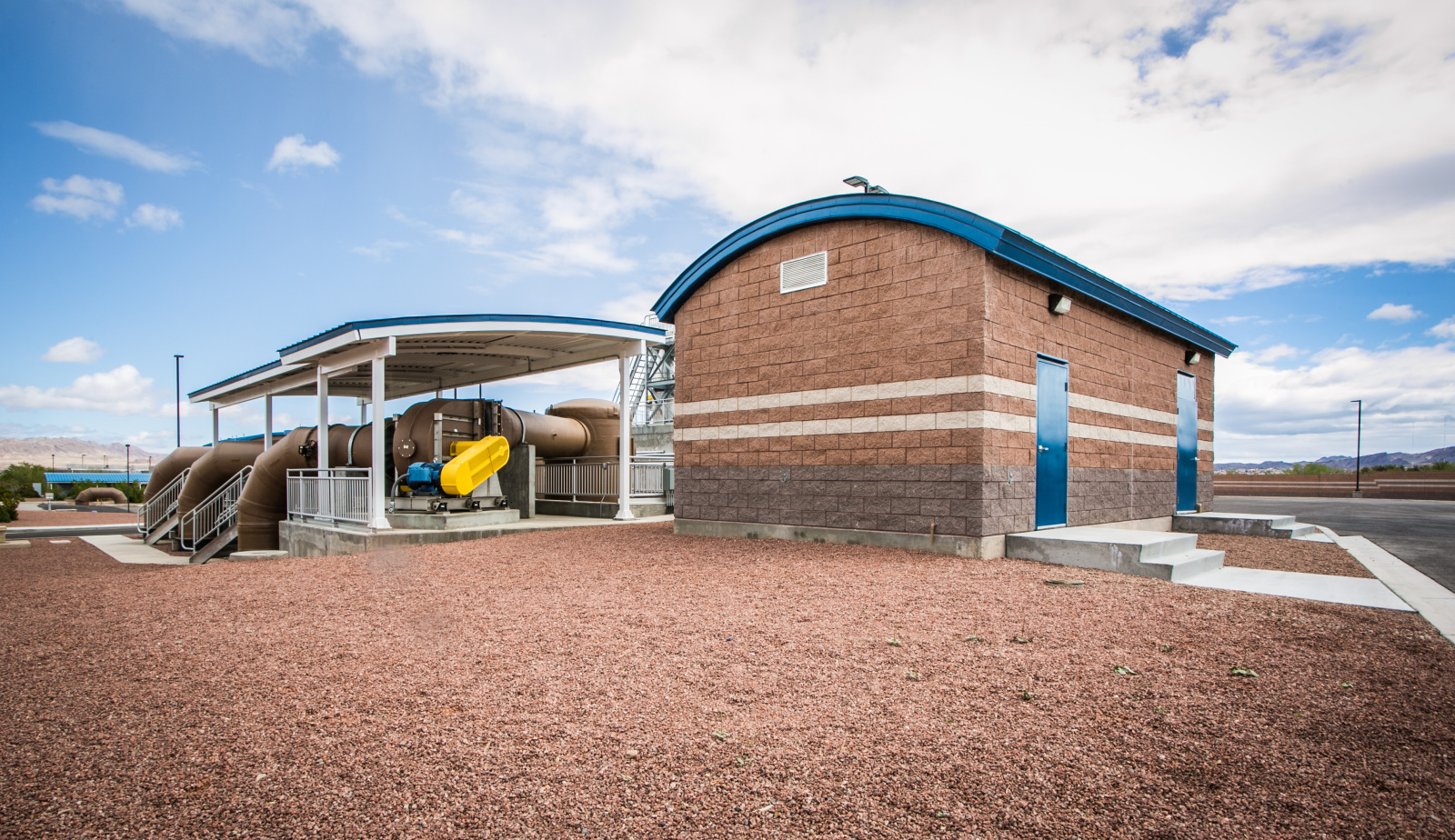

There is also a climate-controlled electrical building with a standing seam metal roof and a motor control center with three phase power and 800-amp bus. The facility also includes adjustable frequency drives, transient voltage suppression system and 100-amp automatic transfer switches. The project also included fully monitored and controlled speed, flow, temperature, level and pressure sensors/indicators and associated transmitters.

PROJECT OVERVIEW

LOCATION:
Henderson, Nevada
West

CLIENT:
City of Henderson

INDUSTRY:
Water Resources

0
800

LF of high-density polyethylene FRP and aluminum ductwork

0
3

vertical inline mixed flow fans

0
3

concrete media reactors
